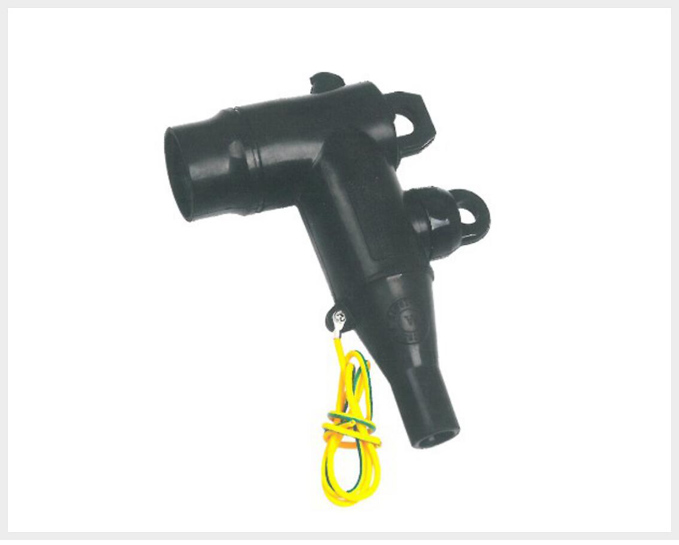

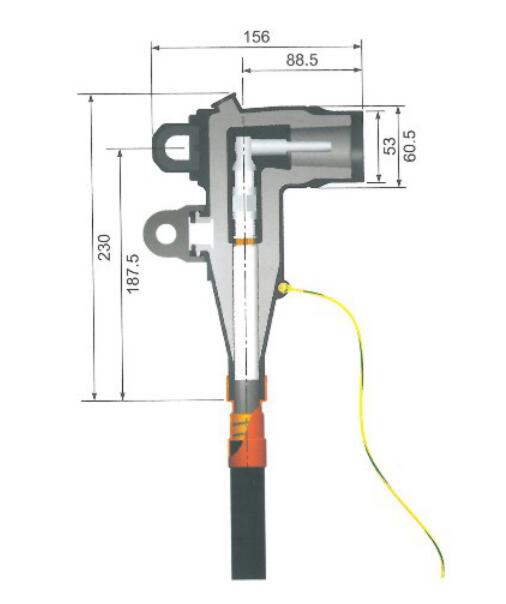

15/24kv Elbow type Cable Connector

Performance

l European style 250A elbow plug is suitable for 15kv and 24kv electrical systems, continuous rated current 250A
electrical system, and used for 250A special cable terminal end of European style ring cabinet. Suitable cable
section area: 25-120mm².

l The product interface conforms to the type A bushing design of the standard EN50180-50181, meet the standards
of IEC60502.4, GB/T12706.4

Technical Parameters

Item	Parameters
Rated voltage	15KV	24KV
Rated current	250A	250A
Power frequency withstand voltage（AC）5min	39KV	54KV
DC withstand voltage (DC) 15min	35KV	48KV
Partial discharge	15KV≤10pC	20KV≤10pC
Lightning impulse voltage	95KV	125KV
Thermal stabilized current	10KV, 0.8s	10KV, 0.8s
Dynamic stabilized current	20KA, 10ms	20KA, 10ms
Applied cable sectional area	25-120mm²	35-120mm²
