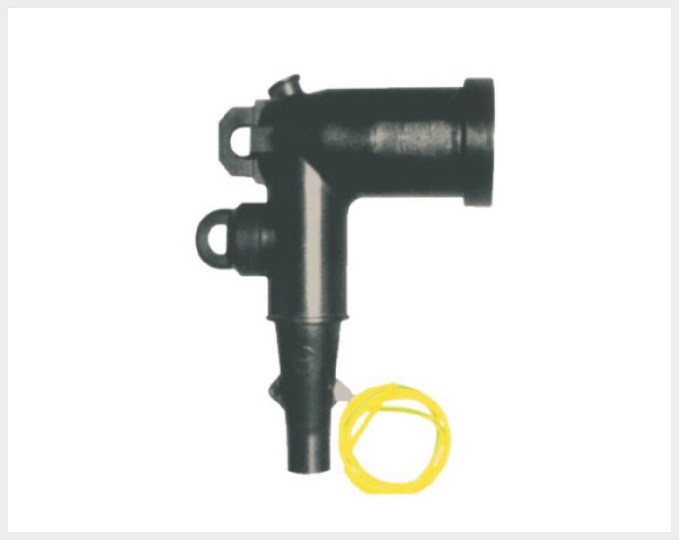

15/24kv Elbow type PT Cable Connector

Application

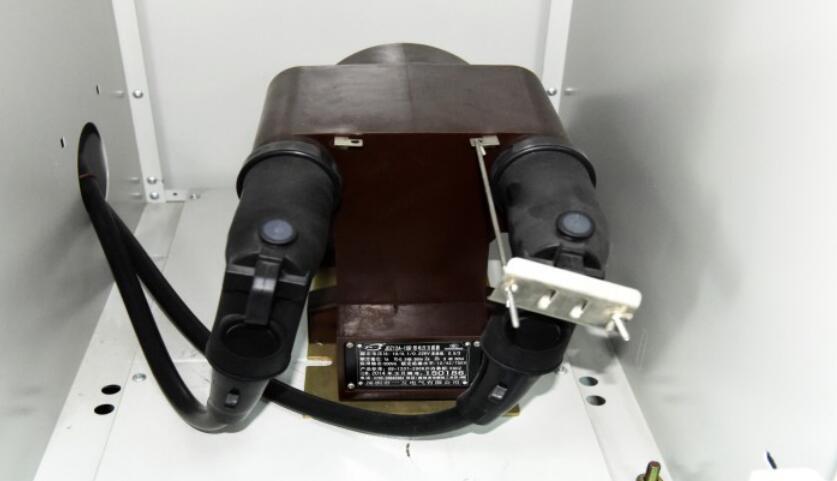

It is suitable for the full insulation, full shield and full seal connection of the high-pressure side of the JDZ12A-10R transformer
for the operation power supply or metering protection of the electric operating mechanism. The cable section is 25-50mm².
Plug and pull connection is very easy, with reliable anti-off device.

Technical Parameters

Item	Parameters
Rated voltage	15KV	24KV
Rated current	250A	250A
Power frequency withstand voltage（AC）5min	39KV	54KV
DC withstand voltage (DC) 15min	35KV	48KV
Partial discharge	15KV≤10pC	20KV≤10pC
Lightning impulse voltage	95KV	125KV
Thermal stabilized current	10KV, 0.8s	10KV, 0.8s
Dynamic stabilized current	20KA, 10ms	20KA, 10ms
Applied cable sectional area	25-120mm²	35-120mm²
