American Style 15kV Single-Pass Bushing for Ring Main Unit / Ring Cabinet
    Publish time 2019-02-27 13:21

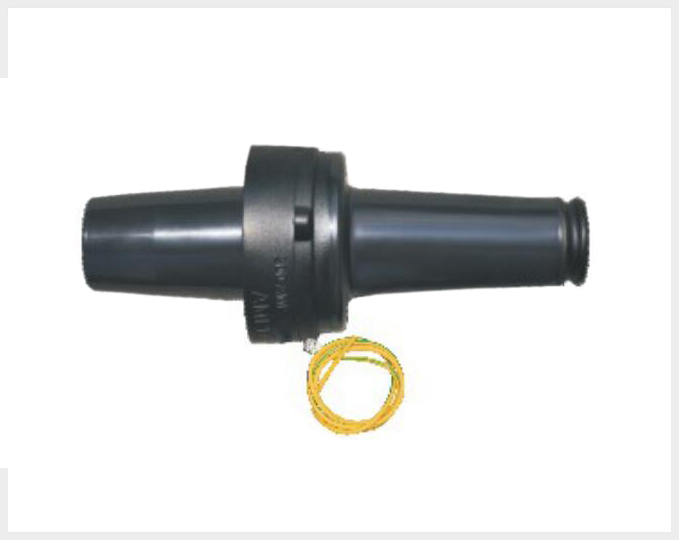

American Style 15kV Single-Pass Bushing for Ring Main Unit / Ring Cabinet
American Style 15kV Single-Pass Bushing for Ring Main Unit / Ring Cabinet

Type:  DJ-15/200
The single-pass bushing is used for the variable high-voltage incoming line of the box, and can also be used for the high-voltage
connection of
the ring cabinet. When the product is used, it is tightly would on the sleeves seat to provide the socket for
the elbow plug with small contact resistance.


American Type 200A Detachable Connector Performance Parameters

Rated voltage

15kV

Rated current

200A

Power frequency withstand voltage (5mins)

39kV

Partial discharge of 15kV

5pC

Thermostable current

16kA

Dynamic stable current (10ms)

40kA




American Application Standard for Detachable Connector
