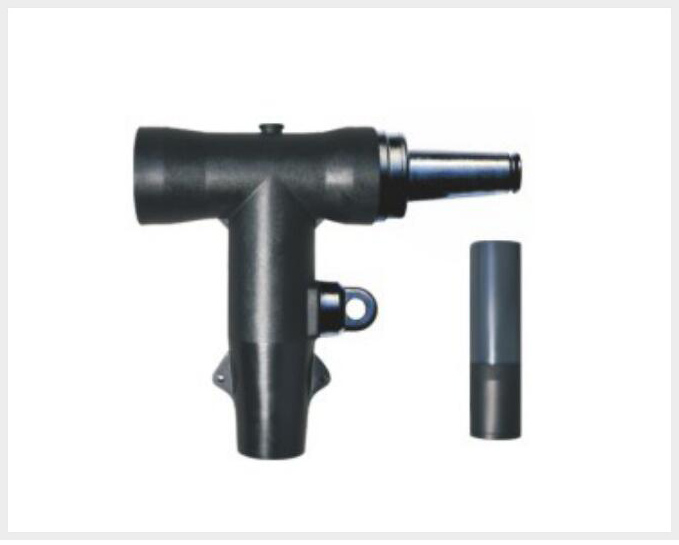

American Style 15kV T Type Cable Connector for Ring Main Unit
    Publish time 2019-02-27 13:21
American Style 15kV T Type Cable Connector for Ring Main Unit
American Style 15kV T Type Cable Connector for Ring Main Unit

Type: TT4-15/600

The T-type / T-connector is used for the main network system of the cable branch box or as the incoming and outgoing cable connector
of the ring network cabinet. It can connect the 600A high-voltage sleeve and multiple socket, or it can also connect with the 600A bus sleeve
and elbow plug to form multiple cable branches. The product has an electroscope. Rated current 600A, suitable for cable section 25-400mm2,
suitable for the 52/80/5/8’’ casing in
Φ40 / medium.

Product Feature

All insulation, all sealing, all shielding products. With the introduction of international advanced post injection insulation technology, the
electrical performance index is higher, and the use is safe and more reliable. T-type
joint an elbow type plug assembly than traditional
structure shortened after 30mm, not only fully meet the requirement of the ring network cabinet installation space, and further the
structure of the cable branch box size smaller.

2mm thick uniform outer shield layer, surface resistance 1000 Q/cm, most advanced prefabricated cable connector.
It is the most advanced prefabricated cable joint in the world.

Product Structure

1.The Cable                 2. Stress Cone              3. Ground Wire                4. T-joint        5. Casing

6. Transfer Head         7. Double-end Bolt        8. Round Head Terminal

9. Check The Cover   10. Conductive Rod      11. Elbow Connector Terminal
12. Elbow Plug


American Type 600A Detachable Connector Performance Parameters

Rated voltage

15kV

Rated current

600A

Power frequency withstand voltage (5mins)

39kV

Partial discharge of 15kV

5pC

Thermostable current

30kA

Dynamic stable current (10ms)

110kA

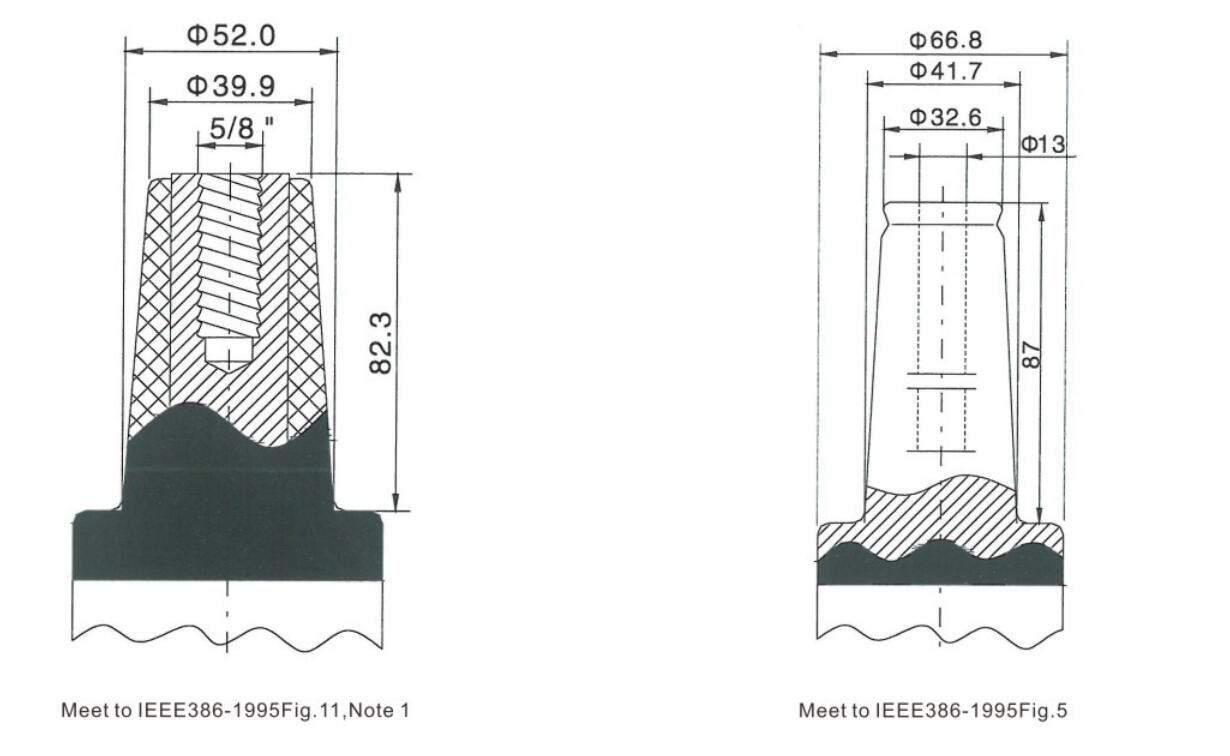

American Application Standard for Detachable Connector
