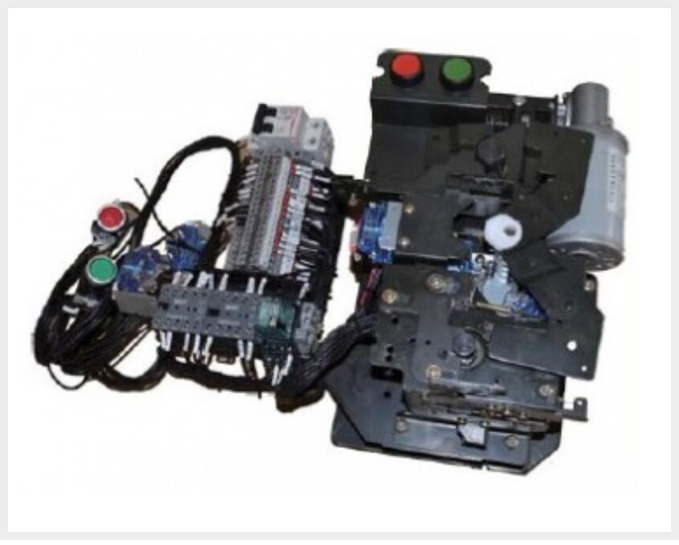

GIS three-position outlet switch ’s motor-operated mechanism MGKJ-011
Technical parameter
1. Matching with ABB GIS three-position
inlet switch and our company’s switch.
2. output and manually operation share the
same shaft. Output torque >80N·m. Output angle±95°
3. exact open position orientation. Motor’s
rated voltage is optional from AC/DC,220/110/48/24, motor’s power is 65W.
Matters need attention during operating
environment
1.altitude not over 2000m, earthquake
magnitude not over 8 degree
2.air temperature lower than +40℃,but not
lower than -30℃. Relative temperature daily average not over 95%, month average
not over 90%.
3.the installation site with frequent
serious vibration, water vapour, gas, chemical corrosive deposit, salt mist,
dust, fire and explosion hazard ,
which evidently affect mechanism’s performance,
is not applicable.
