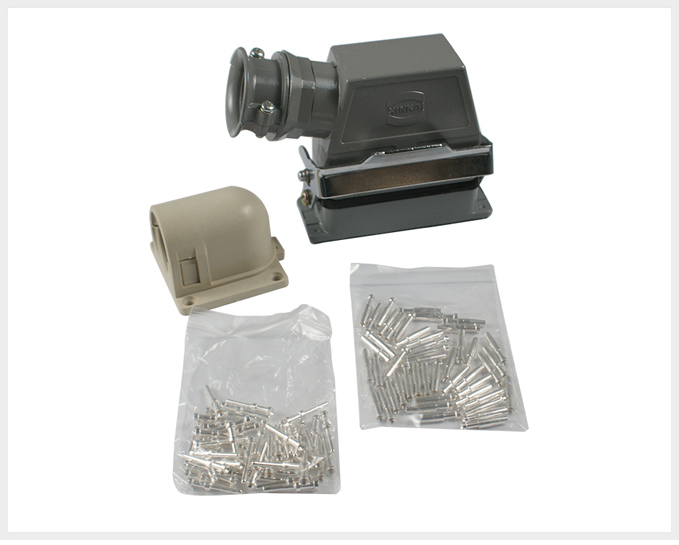

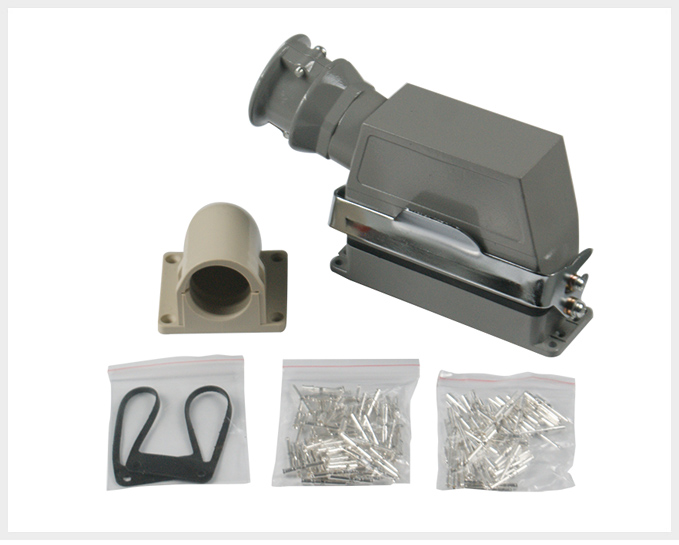

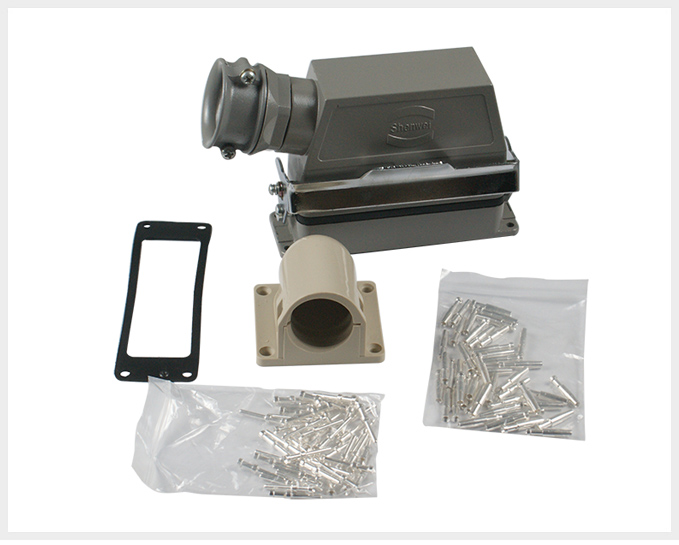

CD Series Secondary Connector Socket
Structural Features:
The connector socket's contact is with
design of plug pin and plug hole, the

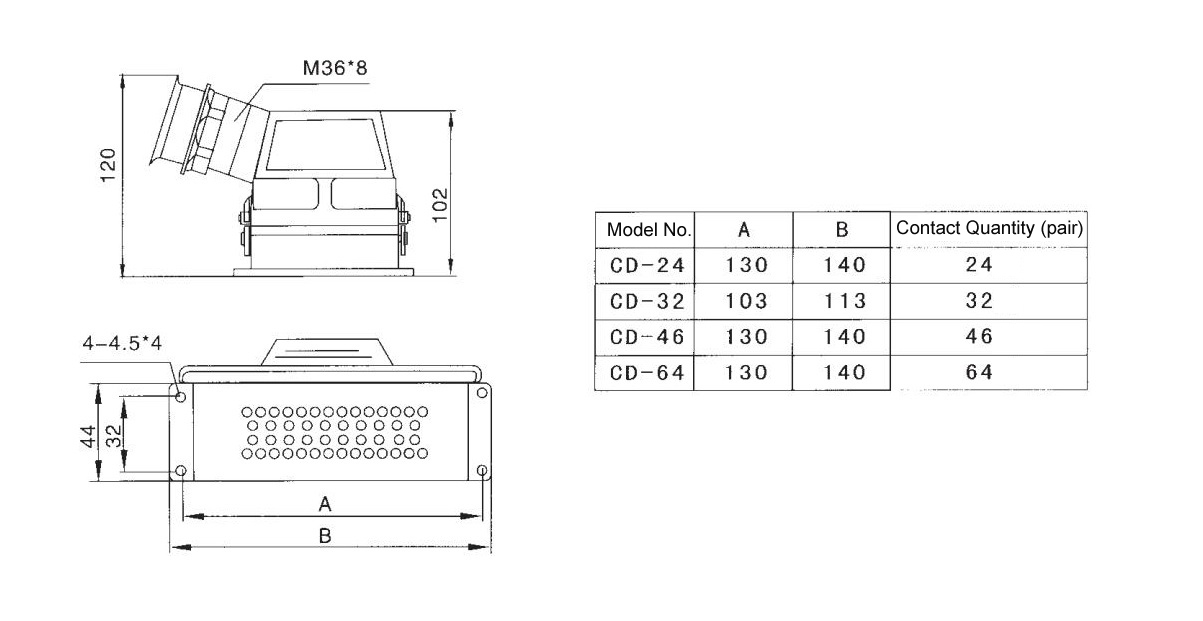

quantity of contact get 24 pairs, 32 pairs, 46 pairs
and 64 pairs, which can be chosen by
technical need.
Compared with similar imported products, we
improved the connector (between socket base and flexible pipe ) and fixed seat,
matched with plastic flexible pipe ( inside
coated with metal spring ), beautiful outside design, comfortable hand feeling,
easy operation,
what's more, it gets positioning device,
which could avoid disoperation.
Connecting Way: Open the connector socket's
locking device, separate plug from socket, respectively take down the cover
plate,
put cable in plug pin or plug hole's wiring holes, an
fasten it with special clamp. Plug pin or plug hole is respectively put in the
matched
mounting holes of plug or socket base matched, when hearing a
sound of crack, the mounting is in right place. The cable is out from
wire
lead, and matched with professional plastic soft pipe M36*8 （inside coated with metal spring), cover plates respectively fixed on
plug and socket base, another side of cables fixed on equipment by a
special turn head. Connector socket cables is lead out from the
bottom, and
fixed on equipment.
Basic parameter
1. Rated voltage: AC380V, DC220V
2. Rated current: AC16A, DC10A
3. Mechanical life: 2000 times

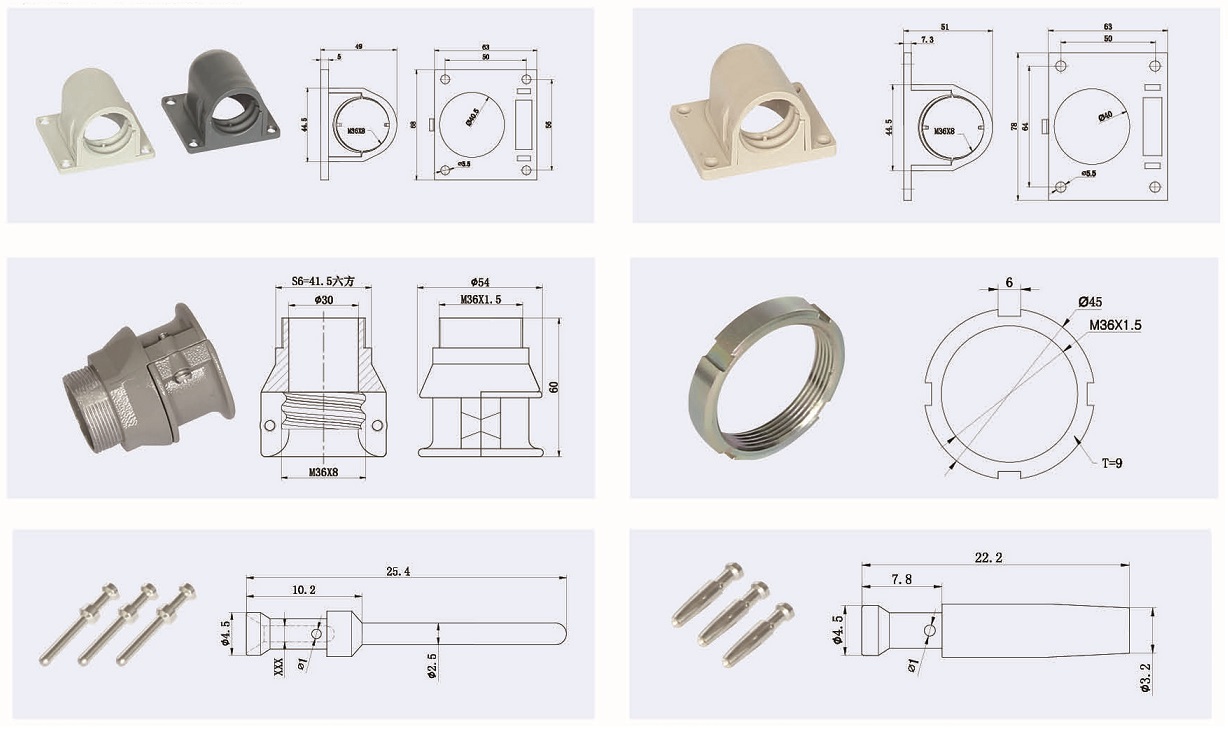

Accessories
