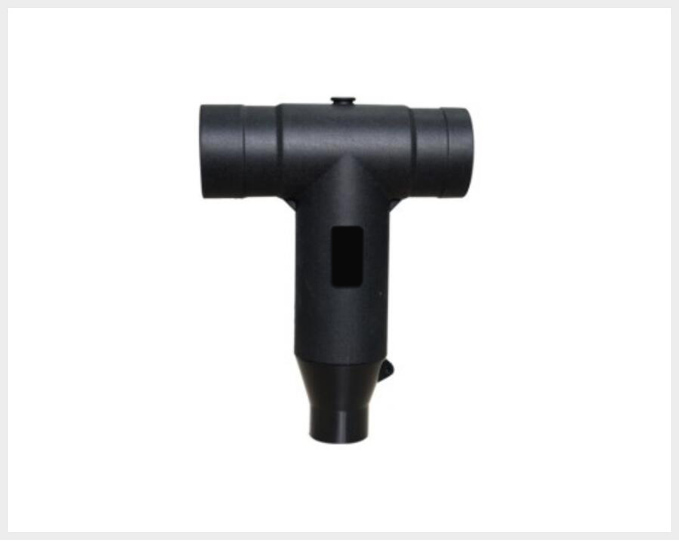

35kv Shielding Type Front Cable Connector

Type: QT-35KV/630A

Product Features

* Suitable for the high voltage electrical apparatus of power plant, power transform station at or under 35kv,
such as cable branch box, combination transformer and incoming/outgoing line of GIS system. Fully insulated,
fully sealed and fully shielding. Adopt advanced back injecting technology, the electric performance reach
international level. More safe and reliable. Mounting conditions nearly won’t be affected by bad weather.
* The cable cross section area is 50-630mm².

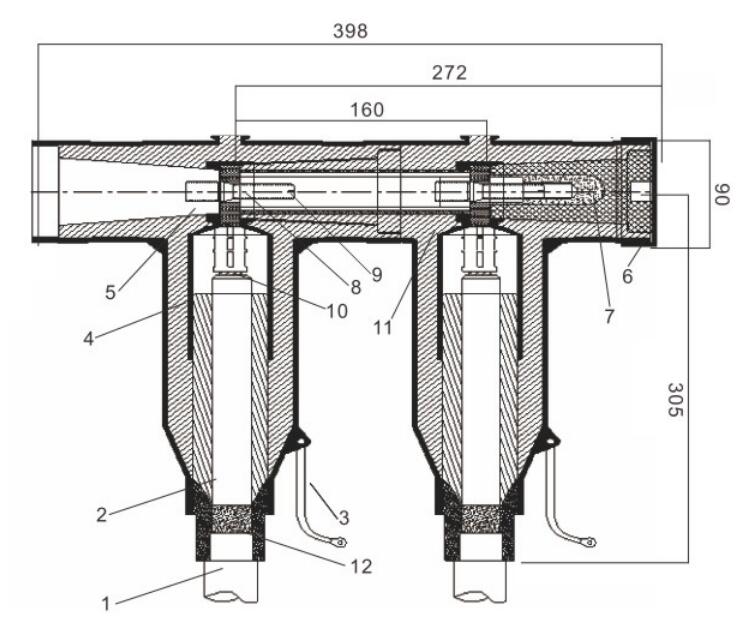

1.      Cable

2.      Cable adaptor

3.      Earthing wire

4.      Front connector body

5.      Bushing

6.      Shielding cover

7.      Non-shielding insulating plug

8.      M16/M12-75 bolt

9.      Copper linking rod

10.   Compression terminal

11.   Rear connector

12.   Semi-conductive layer
