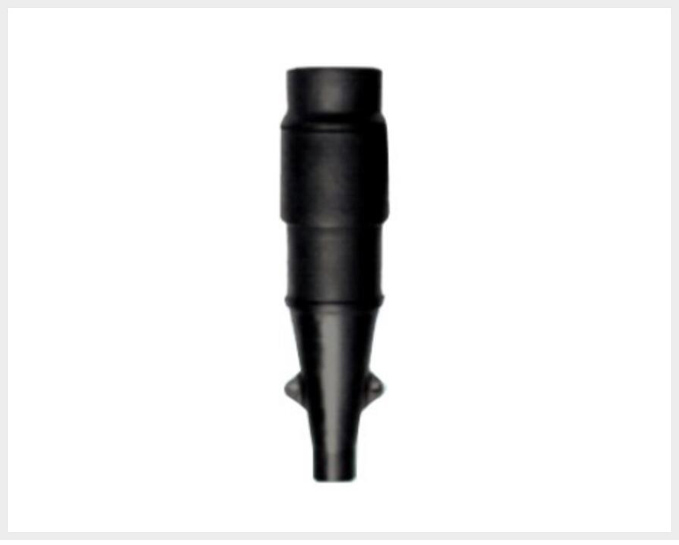

15kv Straight type Type Connector

Type: JFZC-15KV/250A

Performance

The elbow type connector and the straight type connector are used for outlet unit of the transformer in the ring cabinet.
The rated current is 250A, which is suitable for the cross-linked cable of 8.7/15kv and 12/20kv. The cable section is
25-150mm².Special anti-loose structure to achieve elastic pressure tight.

Product Features

 All insulation, all shielding, all sealing products. The anti-loose compact device guaranteed the reliability of application.
Compared with other models, this structure is more compact.

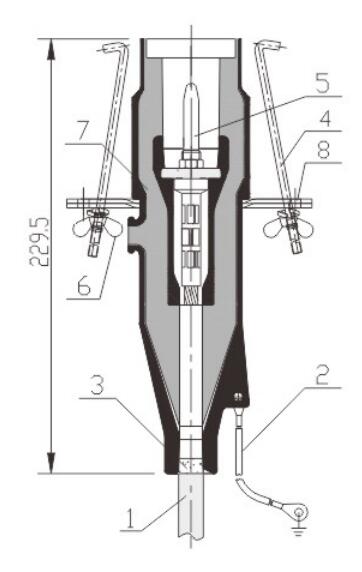

Technical Parameters

1.      Cable

2.      Earthing wire

3.      Semi-conductive layer

4.      Bolt

5.      Terminal

6.      Nut

7.      Elbow type/straight type connector

8.      Compression board

9.      Conductive rod
