Technical parameter

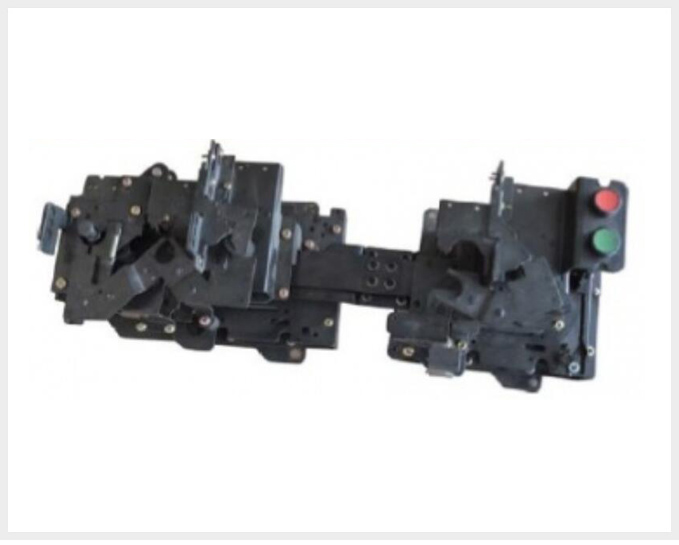

1. Matching with ABB’s GIS circuit breaker, disconnector and our company’s.

2. circuit breaker and disconnector’s output, and manually operation share the same shaft.

3.Output torque ＞80N·m. Output angle±95°。

4.exact open position orientation.

Matters need attention during operating environment

1.altitude not over 2000m, earthquake magnitude not over 8 degree

2.air temperature lower than +40℃, but not lower than -30℃. Relative temperature daily average not over 95%, month average not over 90%.

3.the installation site with frequent serious vibration, water vapour, gas, chemical corrosive deposit, salt mist, dust,

fire and explosion hazard, which evidently affect mechanism’s performance, is not applicable.
